RISEN & RISEN SV
"SuperVeloce"
Porto Aviation Group
Manufacturing the fastest aircraft
powered by Rotax
Risen 912iS world runner
Born from a collaboration of experts in aerodynamics and composite materials, RISEN is a next generation ultralight two seater aircraft, designed and manufactured by Porto Aviation Group (in Lecco, Italy)
Years of research and development, as well as the construction of numerous prototypes, have resulted in the refinement of exceptional aerodynamics
Results? The RISEN holds the absolute speed record in its class, reaching more than 428 km/h, while the Risen SV 916 model exceeds 400 km/h when cruising
Launched at the end of 2017 the production of the retractable versions continues to accelerate, with more than 50 aircraft already in flight around the world.
Risen SV 916 Turbo
“SuperVeloce”
Experience the delight of Flight: Introducing the Risen 916 Turbo SuperVeloce Born from the legacy of the World Record Risen, The Risen SV 916 Turbo.
SuperVeloce transcends traditional VFR limitations, delivering performance that rivals many IFR aircraft.
Powered by the efficient 160hp Rotax 916 Turbo engine, this aircraft features a major aerodynamic redesign, optimized wings, tail planes, and a sleek new engine cowling.
Prepare to be captivated by unmatched flight characteristics. The Risen 916 Turbo SuperVeloce sets a new standard for speed and agility in its class, offering an exhilarating flight experience that's simply unmatched.
Discover the fastest two seat aircraft powered by Rotax in the world. Experience the Risen 916 Turbo SuperVeloce today."than 50 aircraft already in flight around the world.
Airframe comparison
Risen 912iS versus Risen SV 916 Turbo “SuperVeloce”
| Aircraft & Engine model | Risen 912iS | Risen SV 916iS |
|---|---|---|
| Engine max power | 100 hp | 160 hp |
| Standard Empty weight | 330 kg | 350 kg |
| Max. Take Off weight | 600 kg | 600-625 kg |
| Wing span | 9.00 m | 8.20 m |
| Wing area | 9.70 m2 | 8.50 m2 |
| Length | 6.80 m | |
| Max cabin width | 1.23 m | |
| Standard Fuel tanks capacity Options (+60ltr to 100ltr) |
100 ltr | 120 ltr |
Risen SV 60% more powerful
Risen SV MTOW from 600kg UL to 625kg Ex

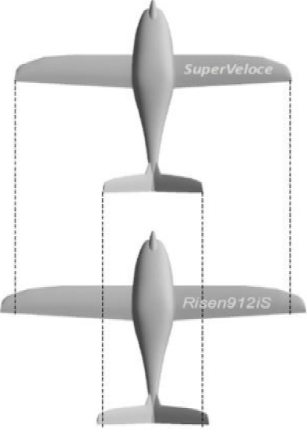

Reduced wing and empennage size
Increased standard Fuel capacity 120ltr (Option up to 220 ltr)
Ground Performance comparison
Risen 912iS versus Risen SV 916 Turbo “SuperVeloce”
Similar take off roll distance
Risen SV 30% longer landing distance
Both can operate on 400m runway
| Risen 912iS | Risen SV 916iS | |
|---|---|---|
| Concrete Runway ISA | 600kg | 625kg |
| Take off roll distance | 170 m/ 560 ft | 180 m / 590 ft |
| Take off Distance (15m/50ft obstacle margin) |
250 m / 820 ft | 260 m / 850 ft |
| Landing Roll Distance | 140 m/ 460 ft | 210 m / 690 ft |
| Landing distance (15m/50ft obstacle margin) |
230 m/ 755 ft | 300 m / 985 ft |
In Flight Performance comparison
Risen 912iS versus Risen SV 916 Turbo “SuperVeloce”
Stall Speed like an Ultralight
Climb Rate like a Business jet
Generous VNO + 10% VNE + 12%
Impressive Glide Ratio 20 to 23:01
Unmatched performance provides
superior level of safety
Normally aspirated vs. Turbo engine
Risen 912iS cruise
at
300km/h (160kt) @ FL90
Risen SV 916 Turbo Cruise
@
395 km/ (215 kt) @FL180
High performance provides
also superior level of safety
| Risen 912iS 600kg |
Risen SV 916iS 625kg |
|
|---|---|---|
| Stall speed with flaps IAS | 70 km/h | 38 kt | 80 km/h | 43 kt |
| Max. Climb rate | 8.0 m/s (1600 ft/min) |
11 m/s (2200 ft/min) |
| Best climb speed IAS | 160 km/h | 85 ft | 175 km/h | 95 kt |
| Max. Rough air speed IAS (VNO) | 285 km/h | 155 kt | 315 km/h | 170 kt |
| VNE IAS (TAS) | 340 km/h | (185 kt) | 380 km/h (450 km/h) 205 kt ( 245 kt) |
| Max. Load factors | +5 /– 3 g | |
| Best glide ratio | 23:1 | 20:1 |
| DATA at 75% power @ different Flight Level | ||
|---|---|---|
| SEAL LEVEL | ||
| Consumption | 17 l/h | 26 l/h |
| Cruise speed (TAS) | 295 km/h | 335 km/h |
| Range | 1590 km | 1420 km |
| FL 90 | ||
| Consumption | 14 l/h | 26 l/h |
| Cruise speed (TAS) | 300 km/h | 365 km/h |
| Range | 1990 km | 1540 km |
| FL 180 | ||
| Consumption | N/A | 26 l/h |
| Cruise speed (TAS) | N/A | 395 km/h |
| Range | N/A | 1680 km |
| Range is calculated with standard tanks | ||
RANGE (from Berlin) @ CRUISE speed 75% Power
Risen 912iS
1990 @ 300km/h
FL90 with 100ltr standard tanks
Risen SV 916
1680 km @ 395km/h
FL180 with 120ltr standard tank
2890 km @ 395 km/h
FL180 with 180ltr long range Tank
3200 km @ 395 km/h
FL180 with 220ltr extra long range Tank
In Flight Performance comparison
Risen 912iS versus Risen SV 916 Turbo “SuperVeloce”
Risen 912iS economical cruise at 220km/h (120kt) @ FL90 burn 7,5ltr/h
Risen SV 916 Turbo Cruise at 260km/ (140 kt) @FL180 burn 8,5ltr/h
High fuel efficiency provide superior versatility
| DATA at economical speed @ different Flight Level | Risen 912iS 600kg |
Risen SV 916iS 625kg |
|---|---|---|
| SEAL LEVEL | ||
| Consumption | 7.5 l/h | 8.5 l/h |
| Cruise speed (TAS) | 190 km/h | 210 km/h |
| Range | 2400 km | 2700 km |
| FL 90 | ||
| Cruise speed (TAS) | 220 km/h | 235 km/h |
| Range | 2800 km | 2950 km |
| FL 180 | ||
| Cruise speed (TAS) | N/A | 265 km/h |
| Range | N/A | 3400 km |
| Range is calculated with standard tanks | ||
Maximum RANGE (from Berlin) @ ECO speed
Risen 912iS
2800 @ 220km/h
FL90 with 100ltr standard tanks
Risen SV 916
3400 km @ 265km/h
FL180 with 120ltr standard tank
5100 km @ 265 km/h
FL180 with 180ltr long range Tank
6000 km @ 265 km/h
FL180 with 220ltr extra long range Tank
How far in 3 hours @ Max continuous speed range
Risen 912iS
975km - 325km/h@20ltr/h
FL90 with 100ltr standard tanks
Risen SV 916
1260 km - 420km/h@42ltr/h
FL180 with 180ltr long range Tank
Specification comparison
Risen 912iS versus Risen SV 916 Turbo “SuperVeloce”
| Standard features comparison | Risen ROTAX 912iS MTOW 600kg |
Risen SV ROTAX 916iS Turbo MTOW 600 625kg |
|---|---|---|
| Idrovario 2 blades | RHS blades with one lever + Flybox constant speed controller PRP 1 | TRS Blades with manual lever Single throttle lever on option |
| Beringer wheel size | 24 ” nose wheel & 5” Main wheel
(6” main wheel on option) |
4” nose wheel & 6” Main wheel |
| Nav lights& strobe lights | On Option | Integrated 2 Nav lights + 3 strobe lights LED (transparent cover) |
| Seats | Standard seat fixed | New adjustable Leather seats in height with headrests |
| Adjustable Rudder pedals | On option | Standard |
| Cabin Heating | Standard heating (more powerful on option) | Powerful heating standard |
| Bose Lemo Plugs | On Option | Standard |
| Avionics | DYNON SKYVIEW HDX (1x10 ’’ | DYNON SKYVIEW HDX (1x10 ’’ GARMIN G3X on option |
| 2025 Price standard Aircraft (without options) | 249 500€ ( without VAT) | 289 700€ ( without VAT) |
Summary
The Risen and Risen SV represent the pinnacle
of high performance aircraft in their class
Risen 912iS
This model boasts exceptional efficiency with an impressive 23:1 glide ratio, optimized for VFR flights within the 600kg MTOW ultralight category.
